Sidewall Conveyor

Share

Model: DJB

Belt width: 400/500/600/800/1000/1200/1400mm

Side wall height: 100/120/160/200/240/300mm

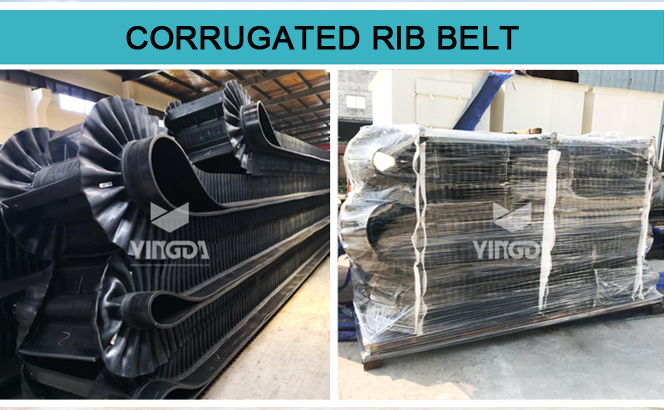

Baffle Shapes: C/T/TC/TCS

Distance between baffles: 126/252/378mm

Conveying Angle: 30°~90°


Introduction

corrugated sidewall belt conveyor3.jpg

Description:

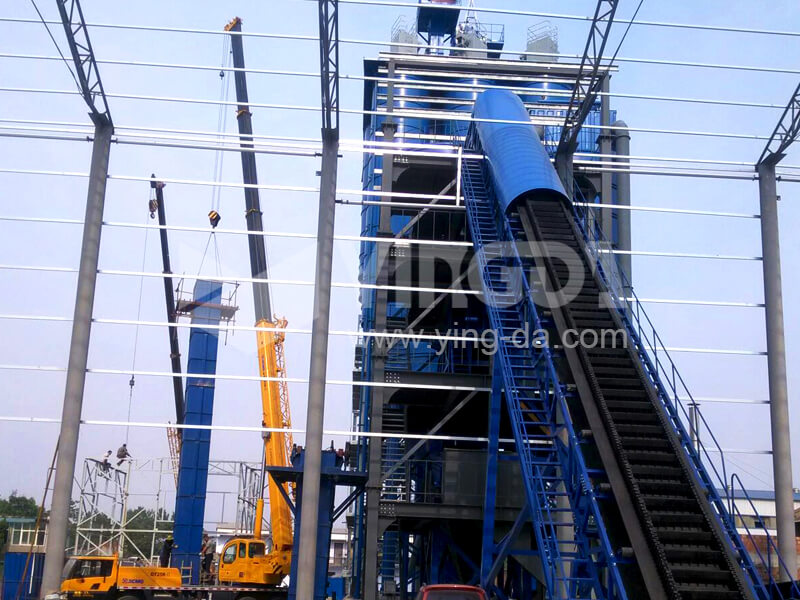

DJ large angle belt conveyor (also called ''large dip corrugated sidewall belt conveyor'') with a large inclination (0-90°) transport. So that it is ideal equipment for achieving large angle conveying. Widely adopted in underground mining projects, open pit mining, large dump trucks and other parties.

corrugated sidewall belt conveyor5.jpg

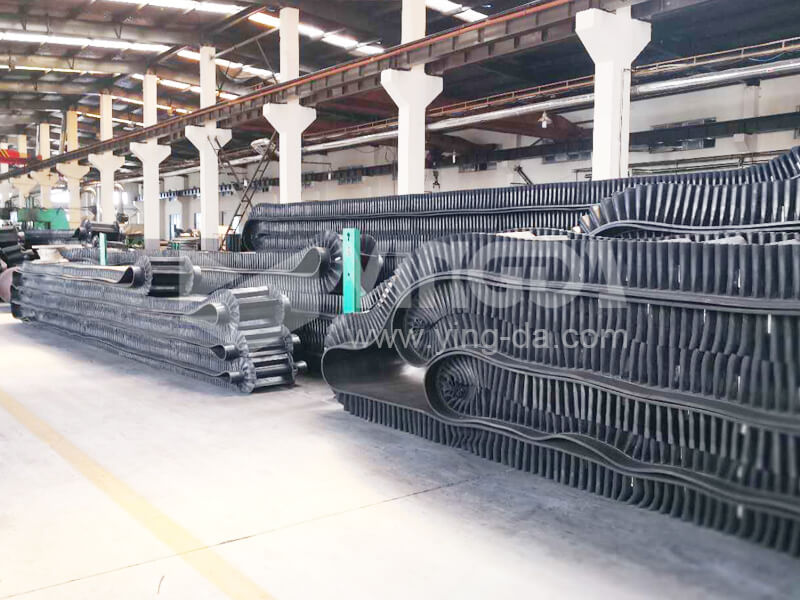

Advantages:

1. High inclination.

2. Large discharge rate.

3. No material spilling.

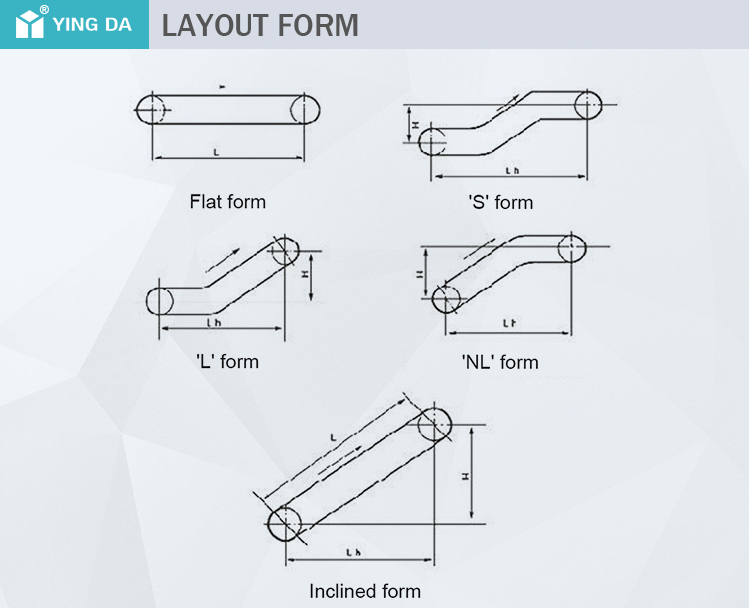

4. Flexible layout.

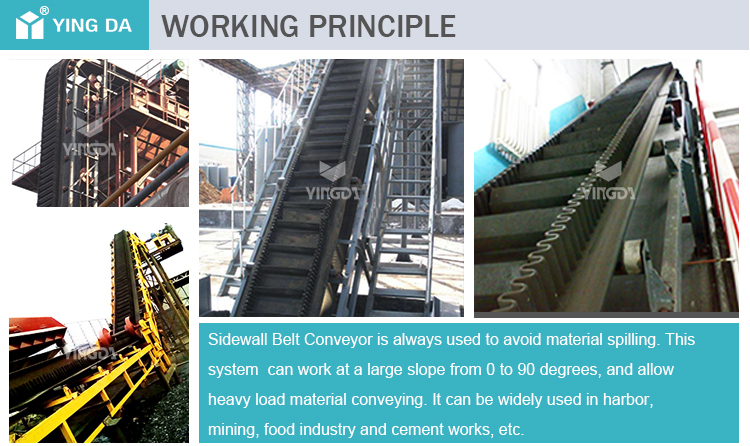

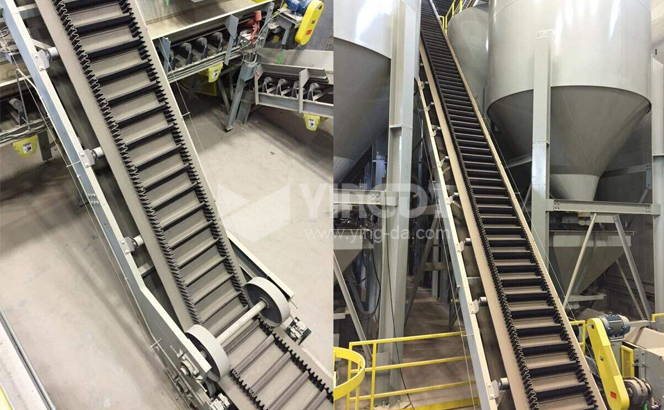

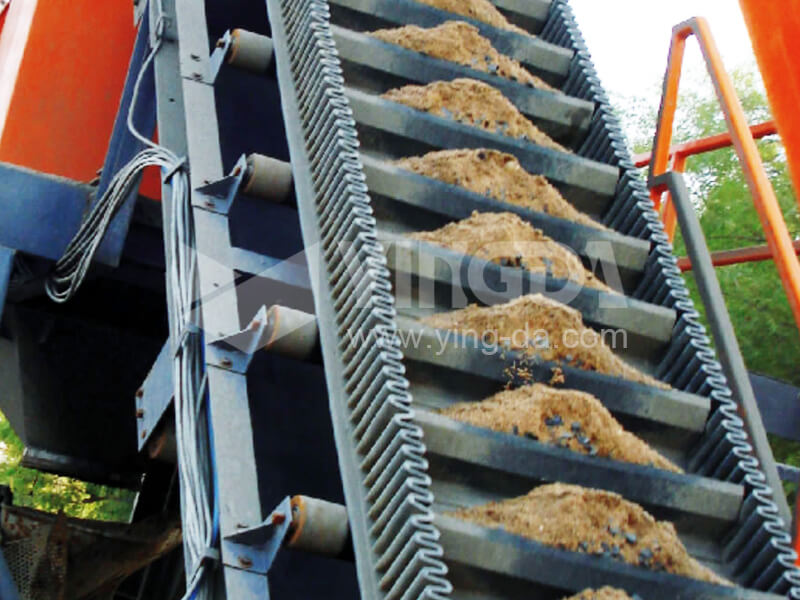

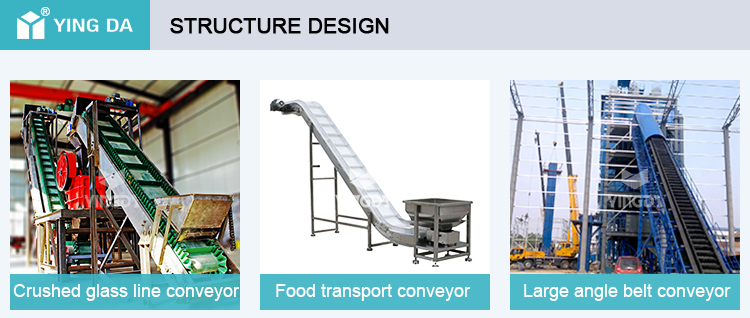

Working principle:

Sidewall Belt Conveyor is always used to avoid material spilling. This system can work at a large slope from 0 to 90 degrees, and allow heavy load material conveying.

corrugated sidewall belt conveyor4.jpg

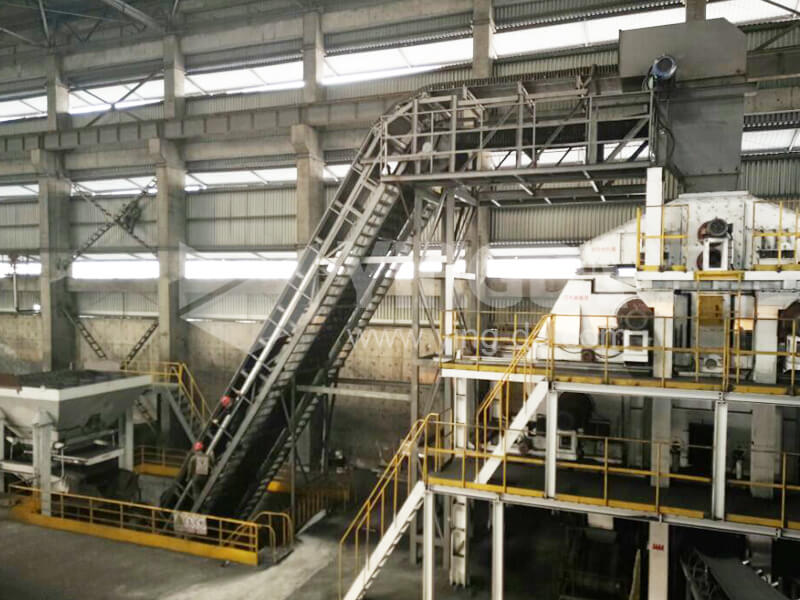

Application:

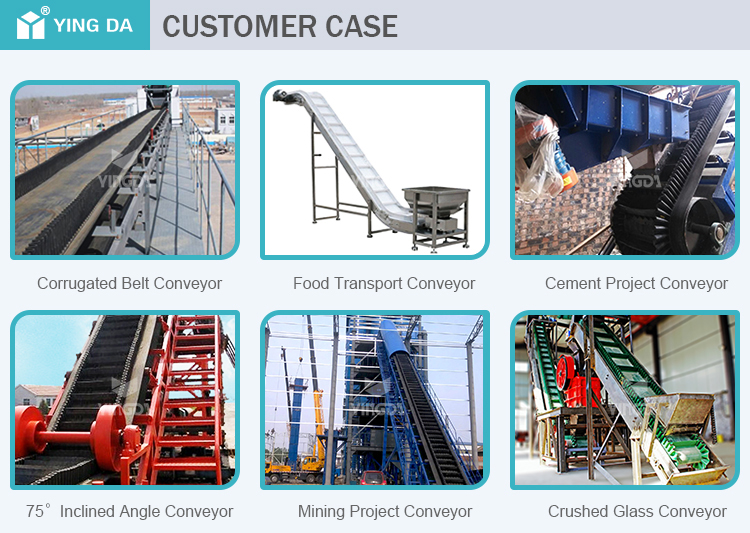

It can be widely used in harbor, mining, food industry and cement works etc.

corrugated sidewall belt conveyor2.jpg

Parameter

Belt width

Sidewall height

Cleat pitch

Slant angle

30°

40°

50°

60°

70°

90°

mm

mm

mm

Capacity(m3/h)    Speed of belt=1m/s

500

120

252

52

40

32

26

21

-

160

378

65

52

42

34

28

17

650

120

252

78

60

48

39

32

-

160

378

73

56

45

36

30

-

800

120

129

99

76

60

49

40

-

200

378

148

114

91

74

61

37

1000

160

378

129

99

79

64

52

-

240

504

229

176

141

-

-

-

1200

160

252

223

180

144

117

96

59

240

378

342

280

224

183

149

91

1400

200

252

299

231

185

151

123

75

240

378

422

345

276

225

184

113
