Home > Products> Conveyor> Grain Suction Machine

Grain Suction Machine

Share

Model: SD100/ 120/ 160

Capacity: 6-25 t/h

Length: 6-10 m

Max. Height: 4m

Introduction

Description:

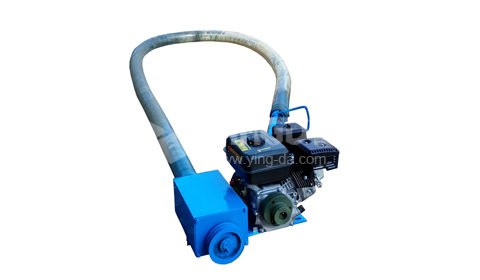

Grain suction machine is new type of conveying equipment for transporting grain (Wheat, paddy, corn and soybean etc).

The grain suction machine with advantages of flexible, easy operation, reduce the labor, low cost and high profits etc. Especially suitable for home and farm use.



grain suction.jpg

Structure of grain suction machine:

1. Screw flight: the material of screw flight is manganese steel, it has good wear-resisting and flexible.

2. Wear-resisting pipe: the material of screw pipe is PVC resin, the PVC resin screw pipe is very good wear-resisting pipe, this will prolong the service lift of screw elevating conveyor.

3. Driving device: motor, belt pulley, transmission belt and safe cover.

4. With inlet device and discharge device.

grain suction 5.jpg

Parameter

Model

Diameter

(mm)

Capacity

(t/h)

Length

(m)

Power

(Kw)

SD100

100

6-10

6-10

1.5/2.2

SD120

120

10-15

6-10

2.2/3

SD160

160

15-25

6-10

3/4/5.5
