Mobile Belt Conveyor

Share

Model: DY

Belt Width: 300/500/650/800/1000mm

Conveying Distance: 3-30m

Belt Speed: 0.8/1.0/1.25/1.6/2.0/2.5m/s

Lifting Height: 0.8~12.5m

Capacity: 25~550m³

Introduction

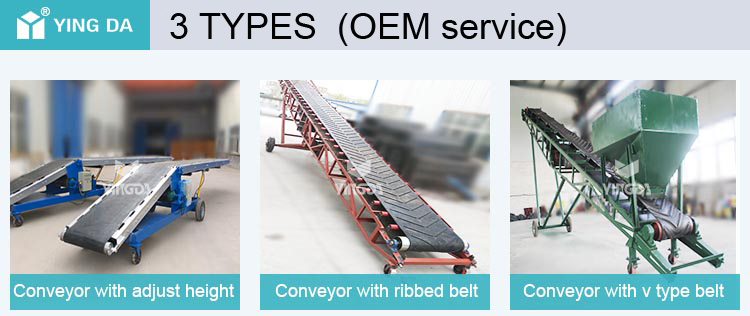

mobile belt conveyor type.jpg

Description:

Industrial mobile belt conveyor is lightweight and portable, mobility applicable in bulk loading, transport packaging and other occasions, suit to diversified occasions, and easy maintenance.

It can be widely used in chemical industry, coal, mine, electrical department, light industry, grain, warehouse truck loading& unloading etc.

It is suitable for conveying various materials, such as granular and powder materials, packed bags, cartons and container sacks etc.

The bulk density should be 0.5~2.5t/m3.

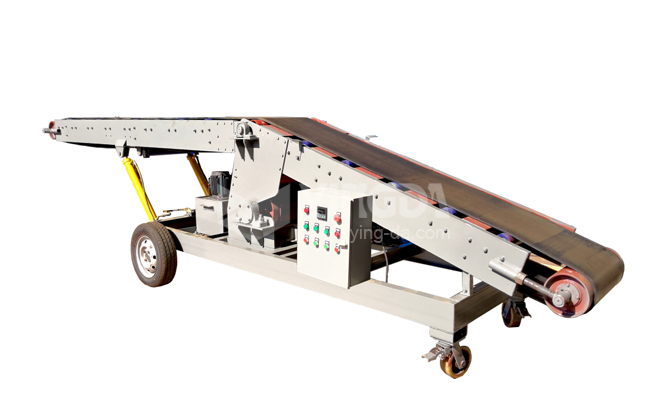

mobile belt conveyor5.jpg

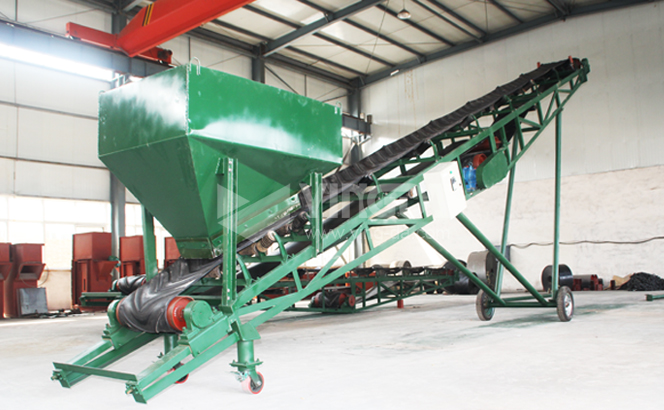

mobile belt conveyor6.jpg


Working principle:

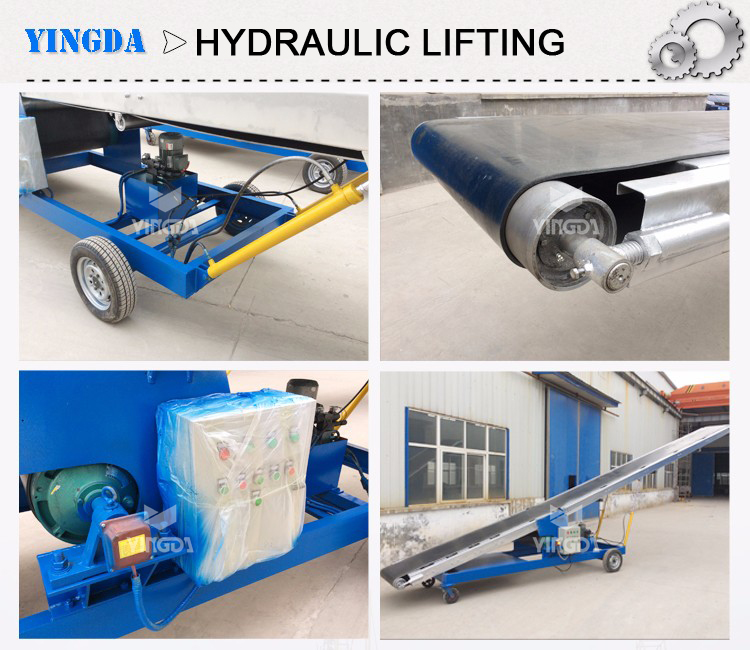

Mobile belt conveyor consists of main body of metal frame, pulleys, rollers, belt, motor, reducer and control pannel etc. Belt is looped around the head pulley, tail pulley and rollers. When head pulley is powered by electric motor, the belt slides across the rollers meanwhile moving the product on the top of the belt, and the machine is portable, reduce the labor intensity of worker and improve efficiency.


Advantages:

1. Simple structure and easy installation.

2. Low rate of breakdown and adapt to different use condition.

3. Various design form can meet different industries.

4. Cheap cost and long working life.

5. Easy move with special wheels, hight adjustable.

Application:

Mobile belt conveyor is widely used for coal gangue, coal, coke ash, river sand, fertilizer, grain, biomass, packed bags, cartons and container sacks etc.

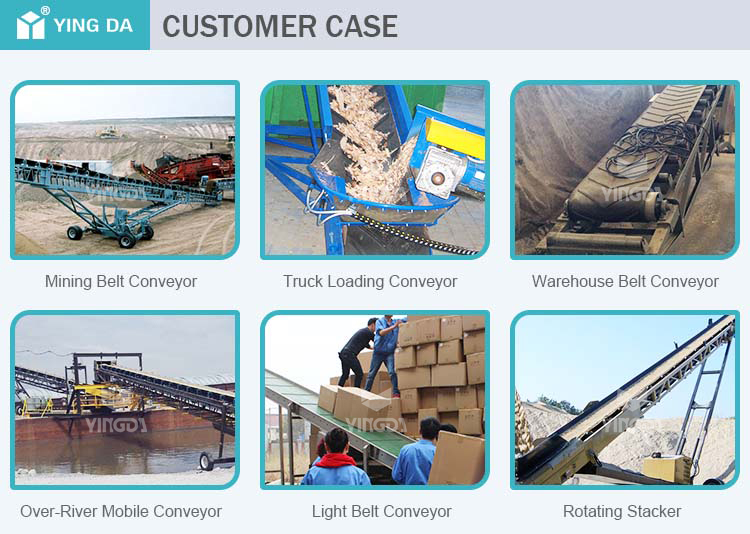

mobile belt conveyor7.jpg

Parameter

Model

DY400

DY500

DY650

DY800

DY1000

DY1200

DY1400

Length (m)

3~25

Belt width(m)

400

500

650

800

1000

1200

1400

Belt speed(m)

0.4~1.25

Conveying height

≤9

Conveying capacity(m3/h)

40

80

200

300

500

800

1000

Slant angle (°)

0°~18°

Electric roller

Model

DY

DY

DY

DY

DY

DY

DY

Power(kw)

2.2

2.2

3.0

4.0

7.5

11

15
