Telescopic Conveyor

Share

YINGDA telescopic conveyor, safe and efficient for loading and unloading. Biggest advantage is providing an ergonomic operating conditions, the operator could adjust the conveyor to achieve a perfect position via buttons control its extension and retract, loading and unloading easily and efficiently, all the actions feedback to the operator by electronics.

Introduction

YINGDA telescopic conveyor, safe and efficient for loading and unloading. Biggest advantage is providing an ergonomic operating conditions, the operator could adjust the conveyor to achieve a perfect position via buttons control its extension and retract, loading and unloading easily and efficiently, all the actions feedback to the operator by electronics.

Benefits:

. Reduce the distance between the manual and the handling material
· Shorten the time of loading and unloading
· Reduce the rate of damage and broke down

Features:

 · Easyoperation: breaks artificial moving back and forth, reduce laborintensity.
· Standard work: loading, storage field in an orderly and effectively operations to avoid themess phenomenon
· Save labor: artificial can reduce more than 2/3 based on original loading way.
· Safety operation: bring the lowest accident rate in the process of loading, even at zero incidences.
· Promote the enterprise image: standard automation equipment conform to the requirements ofmodern enterprise.

According to your vehicle length/ warehouse condition, we have several models for your reference.

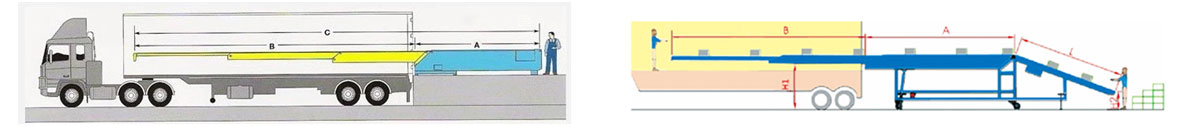

Parameter


Model

Section

Fixed length mm (A)

Extension length mm (B)

Inclined length mm (L)

Belt width mm (W)

Height mm (H2/H1)

HTBC2S-6/4

2

6000

4000

3500-4000

650/800

750/1600

HTBC3S-6/8

3

6000

8000

3500-4000

650/800

750/1600

HTBC3S-7/9

3

7000

9000

3500-4000

650/800

750/1600

HTBC4S-6/12

4

6000

12000

3500-4000

650/800

750/1600

HTBC4S-7/14

4

7000

14000

3500-4000

650/800

750/1600
