Middle Duty Apron Feeder

Share

Model: WBL Apron Feeder

Width: 1000-2400

Speed: 0.01-0.1m/s

Feeding Size: ≤1500mm

Capacity: <680t/h


Introduction

Description:

Middle Duty Apron Feeder is a large machine that carries large bulk of stone or other materials to Crusher or silo etc.. These machines is known as plate feeders or apron conveyors. Apron feeder machines allow to be automatically controlled the volume and speed .

It can be installed horizontally or aslant ,but the maximum slant angle couldn’t more than 12 degrees.

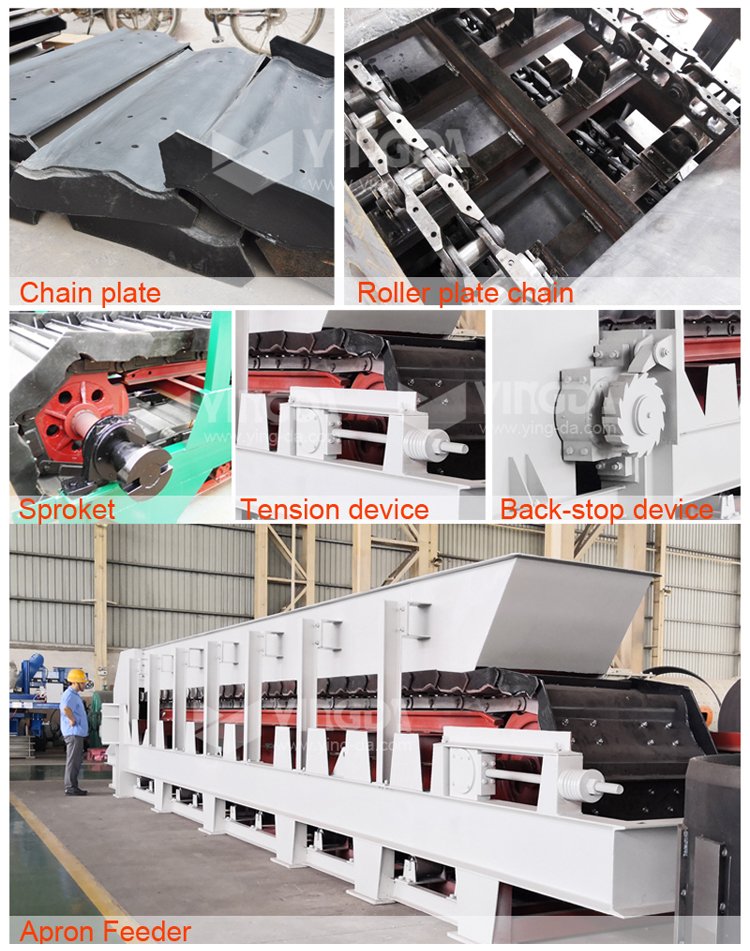

Apron feeder structure:

apron feeder structure.jpg


Advantages:

1. The apron feeder is widely used for conveying metal ,limestone, gold ore and construction waste, gypsum etc.

2. It can bear big pressure under small silo or loader .

3. The speed can be adjusted by frequency conversion control cabinet.

4. Including the feed trough, to prevent the material leakage.
5. Thickness of plate is from 8mm to 20mm.
6. Matched with Such as ABB, Siemens, Flender and SEW etc if required.

7. Can be customized.

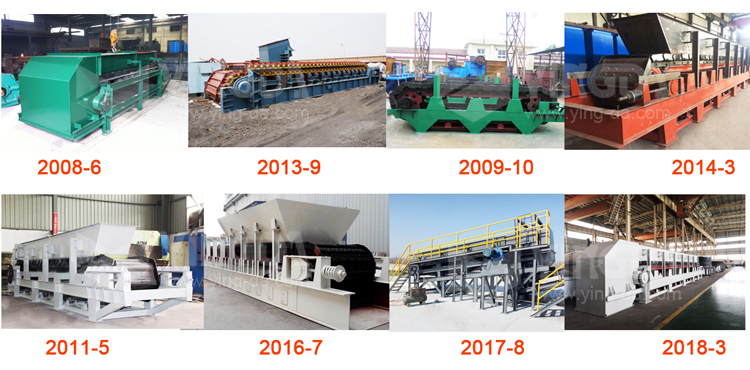

Customers case:

apron feeder case.jpg

Parameter

Model

Plate width

Head to tail shaft center distance

Speed

Feed size

Capacity

Power

Reference weight

(mm)

(mm)

(m/s)

(mm)

(t/h)

(kw)

(kg)

WBL100-6

1000

6000

0.01-0.15

≤500

≤300

18.5

15000

WBL120-6

1200

6000

0.01-0.15

≤600

≤400

22

16000

WBL125-6

1250

6000

0.01-0.15

≤600

≤450

22

18000

WBL140-8

1400

8000

0.01-0.15

≤700

≤500

30

29000

WBL150-10

1500

10000

0.01-0.15

≤1200

≤800

37

49000
